Tianjin Xinshifeng Hydraulic Machinery Co., Ltd.
| Cantidad de pedido mínima: | 1 |
Sombra:

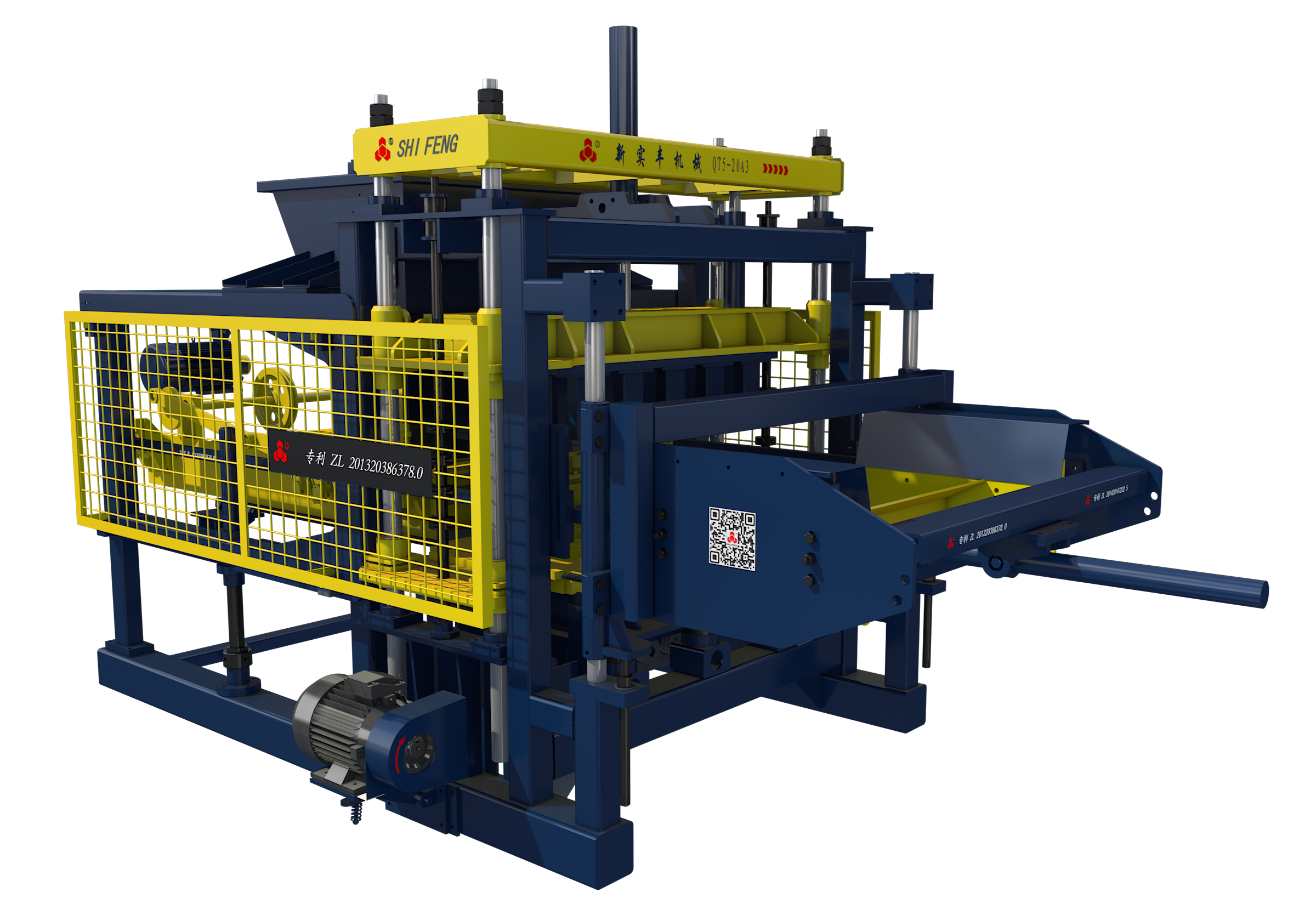

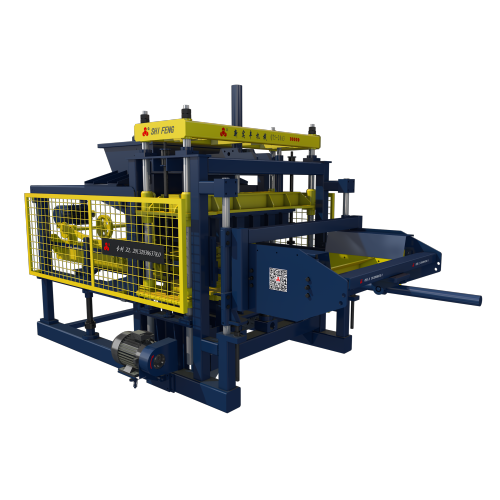

Modelo: QT4
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Pallet Size | 1020x550x（10-30）mm |
Control System | Fully Automatic/Semi-automatic |
| Product Height | 50 – 200 mm | Total Power | Approx. 23 kW |
| Molding Area | 950 × 550 mm | Machine Dimensions | 4650 × 2300 × 2560 mm |
| Molding Cycle | 20 – 25 s (depends on product) | Applicable Standard | JC/T920-2011 (Block Molding Machines for Building Materials Industry) |
| Product Type | Size (mm) | Blocks/Cycle | Product Type | Size (mm) | Blocks/Cycle |
|---|---|---|---|---|---|
| Paving Brick | 100 × 200 | 25 | S-Shaped Paver | 128 × 240 | 18 |
| Standard Brick | 238 × 51 | 36 | I-Shaped Paver | 161 × 195 | 15 |
| 8-Hole Brick | 240 × 115 | 16 | Turf/Grass Paver | 300 × 300 | 3 |
| Hollow Block | 390 × 190 | 5 | Hollow Brick | Diagonal 400 | 3 |
| Curbstone / Kerb | 995 × 300 | 1 |
